Z4
TECH SPECS

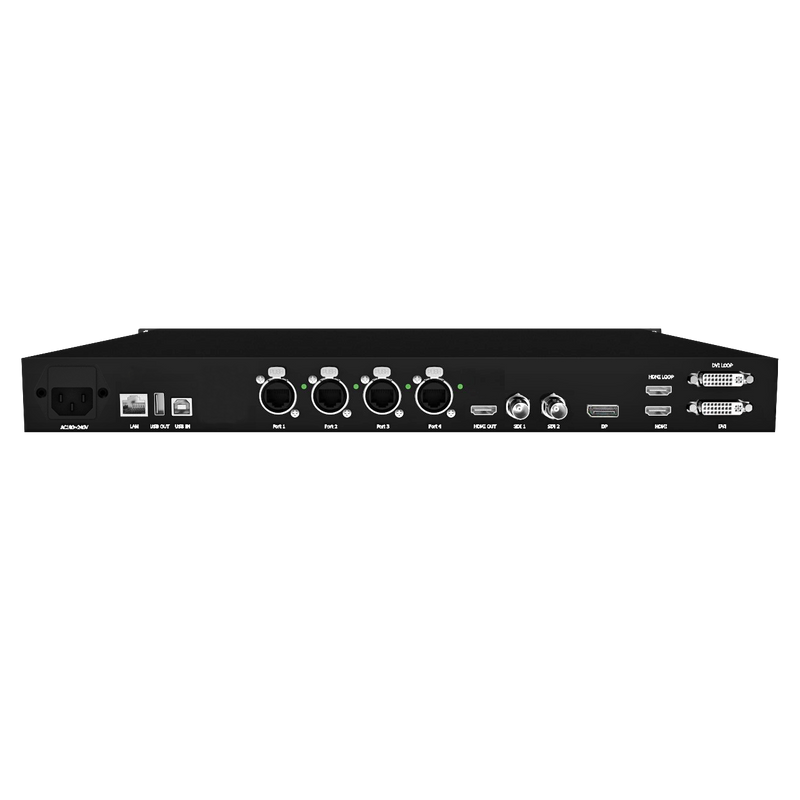

Video input ports including 1*HDMI(with loop), 1*DVI(with loop), 2*SDI, 1*DP;
Input resolution up to 1920*1200@60Hz;
The input images can be scaled according to the screen resolution;
Support PIP function, the location and size can be adjusted freely;
Support 12bit HD video source;
Loading capacity: 2.3 million pixels; Maximum Width: 4096 pixels, Maximum Height: 4096 pixels;
Support splicing and cascading among several controllers with synchronization strictly;
Support brightness and chromaticity adjustment, color gamut transformation;
Support zero latency of sending;
Support improved gray-scale at low brightness;
Support HDCP1.4;
Compatible with all receiving cards , multifunction card, optical fiber transceivers of Colorlight.
