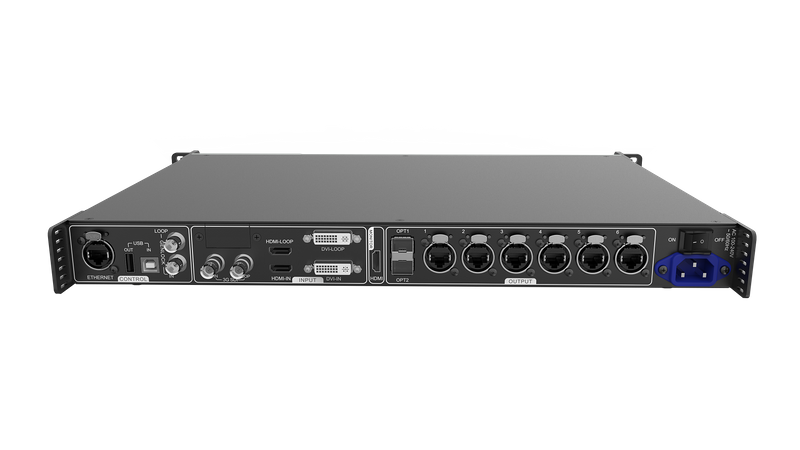

The MCTRL660 PRO has various video connectors:
-Input connectors: 1 × 3G-SDI, 1 × HDMI 1.4a, 1 × single-link DVI;
-Output connectors: 6 × Gigabit Ethernet port, 2 × 10G optical port;
-Loop output connectors: 1 × 3G-SDI LOOP, 1 × HDMI LOOP, 1 × DVI LOOP.
The MCTRL660 PRO has many industry-leading advanced technologies:
-Input of ultra-high color depths, such as 10-bit/12-bit 4:4:4, with input resolutions up to 1920×1080@60Hz, increasing color expression capabilities by 4096 times compared to 8-bit inputs, and presenting images with rich and delicate colors, smoother transitions, as well as clearer details;
-Independent Gamma adjustment of RGB, effectively controlling image nonuniformity under low grayscale and white balance offset to improve image quality;
-A low latency of less than 1 frame (≤ 10 lines);
-Dual working modes: working as sending card and fiber converter;
-One-click backup and recovery, quickly recovering previous screen configurations to deal with sudden on-site failure.
-Image flipping, making stage effect more cool and dazzling;
-Auto LED screen configuration;
-Web control;
-Pixel level brightness and chroma calibration;
-Monitoring of inputs;
-Multiple MCTRL660 PRO units can be cascaded.
The MCTRL660 PRO is mainly used for the rental and fixed fields, such as concerts, live events, security monitoring centers, Olympic Games and various sports centers.
